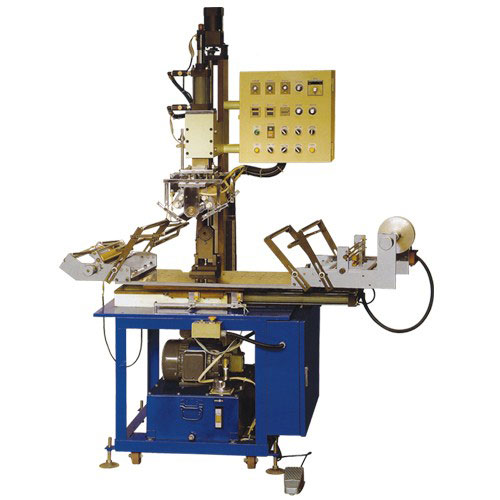

Flat-Type Automatic Heat Transfer Printing Machine

Applications: Designed for gilding and transfer printing on plastic products

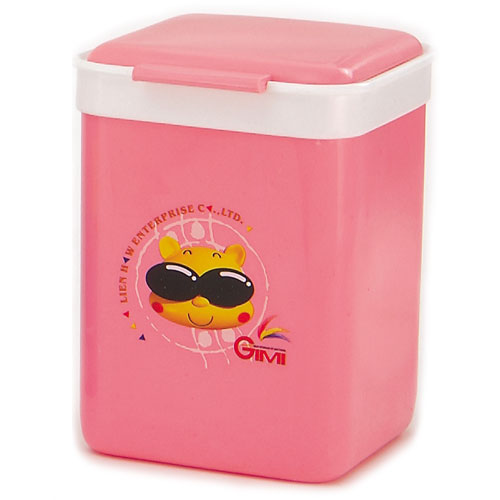

  1. Applicable products: Electric home appliance housings, clock facades, kitchenware, stationery, giftware, and cosmetic containers
  2. Torque adjusting device enables foil sending to always be maintained at proper tension
  3. Photoelectric cell and timer are used to precisely control the positioning of foil sending
  4. Easy and fast to operate


Modle YT-10
Roller 100dia x 250L
Power 220V x 50/60HZ
Work area 300x500L
Electric heaters 400W x 6pcs
Temperature adjustment computer contrilled SSR 0-400°C
Max. spread width 400mm
Foil rolling Variable-speed motor plus photoelectric-cell timer
Foil sending AFTC
Pressuizer Hydraulic type
Max.Pressure 800kg/cm2
Machine Dimensions 1400x900x2100
Machine weight 900kgs
Packing measurements 1600x1050x2300
Packing weight 1000kgs
