Cone-Shaped, Curved & Big Area Automatic Heat Transfer Printer

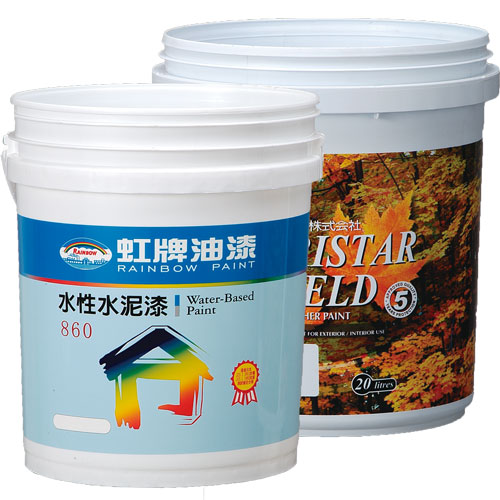

- Professional heat transfer printer for cone-shaped products with big area, for, example: 5- gallon oilcans, paint cans.
- Printing area: 400mm dia, height 350m/m.
- Transfer figuration fanwise according to conoid product, without creasy.
- Stable speed with variable adjustment.
- Foil sending with torque control, keep applicative tension.
- Variable-speed motor and photo-timer ensure smooth foil sending with accurate positioning.Specifications
Video:
Spec.:
| Modle | YT-101 |
|---|---|
| Roller | 120dia x 350L |
| Power | 220V x 50/60HZ |
| Electric heaters | 600W x 7 pcs |
| Temperature adjustement | computer controlled SSR 0~400°C |
| Max. spread width | 400m/m |
| Foil rolling | Variable-speed motor plus photoelecttic-cell timer |
| Foil sending | AFTC |
| Work area | 400x350m/m |
| Pressuizer | Hydraulic type |
| Max.Pressure | 1100kg/cm2 |
| Machine Dimensions | 1800x1100x2100 |
| Machine weight | 1000kgs |
| Packing measurements | 1900x1200x2300 |
| Gross weight | 1100kgs |
